Txabardo

HOME > Shop > Txabardo

Frames

349,00 €

EU shipping included.

The Txabardo, our new Trail frame, was designed to handle the most demanding and technical trails. It offers the best of both worlds – amazing downhill capacities, thanks to its head angle of 65 degrees and its long top tube, but when things go up the short 425 mm chainstays really do the trick to help you climb faster. We simply love this geometry. The Txabardo is just asking to be trashed!

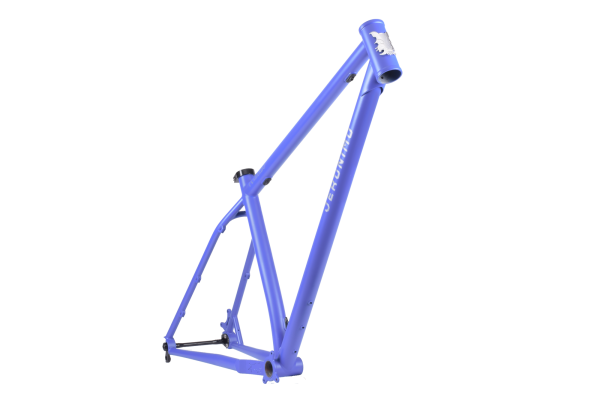

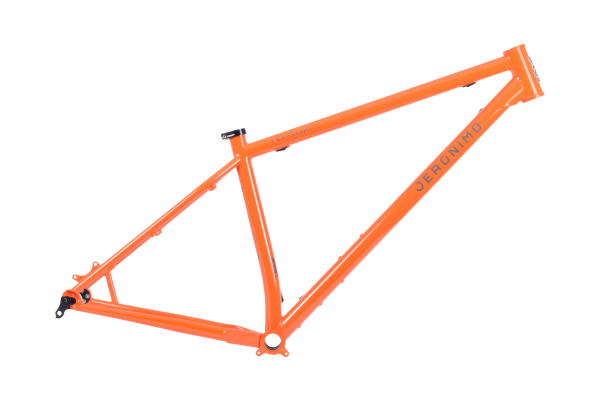

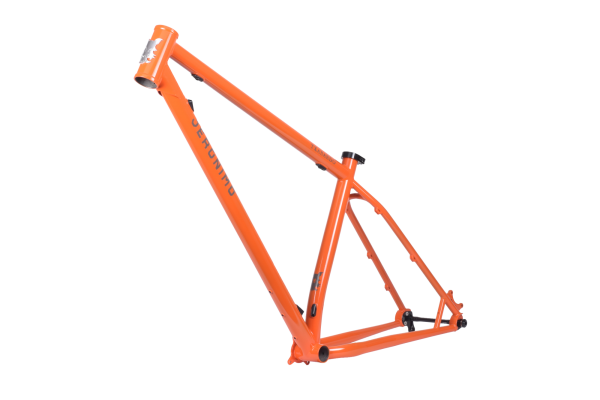

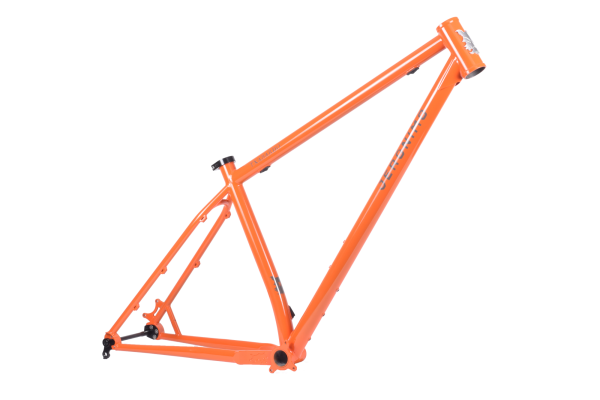

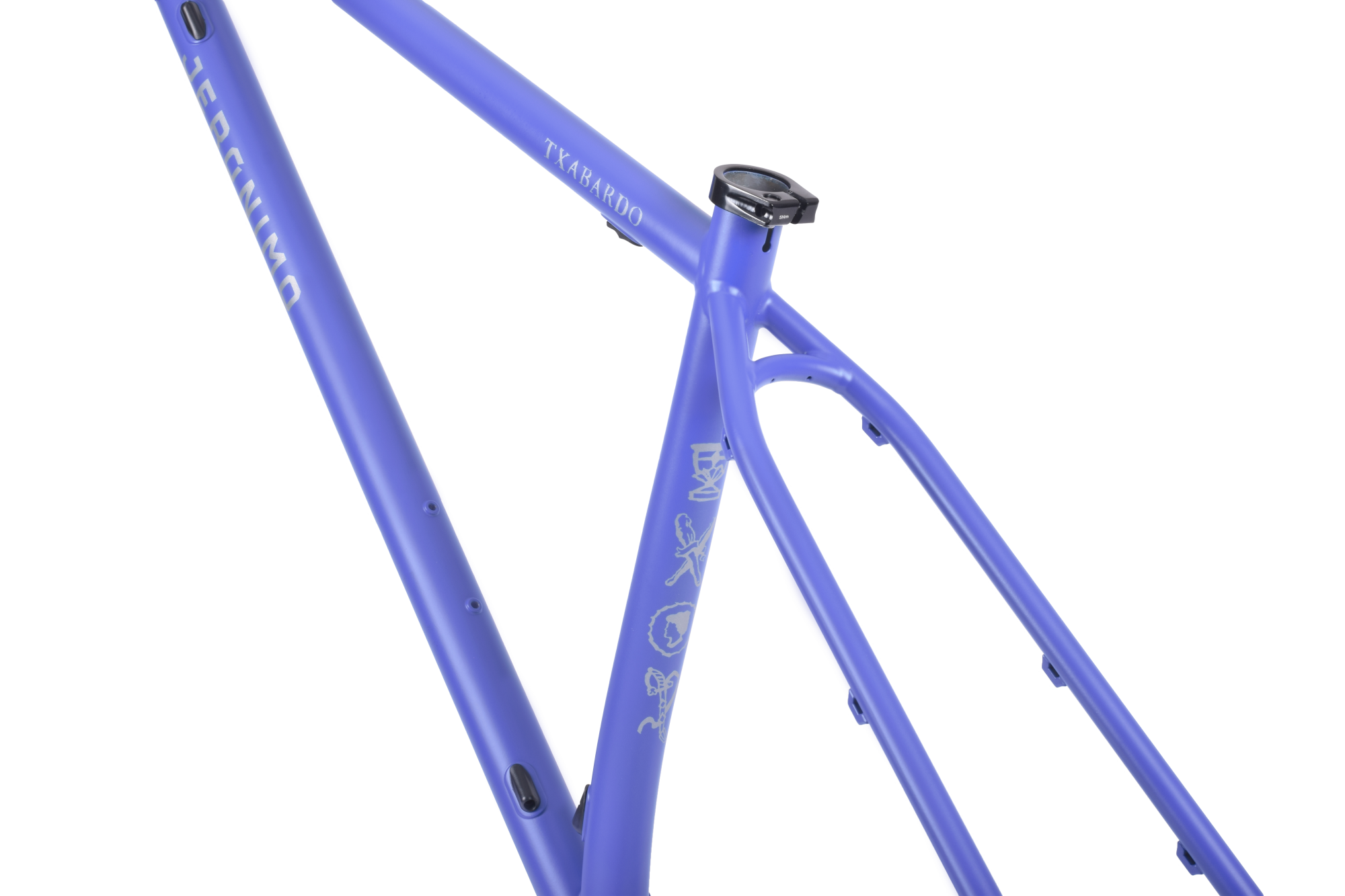

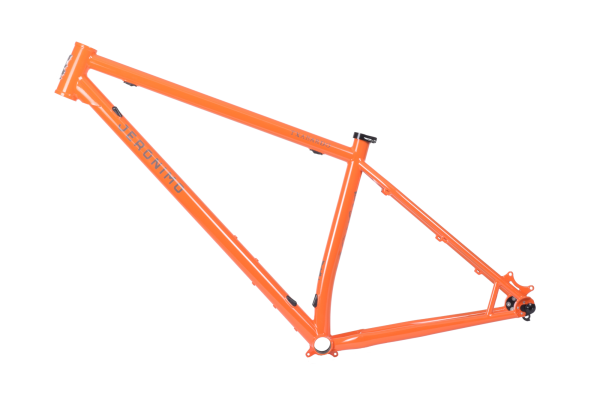

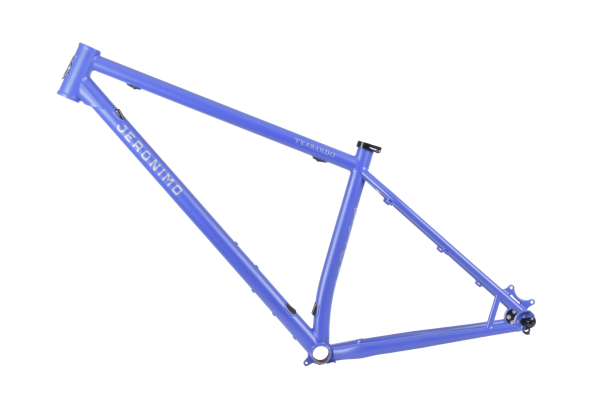

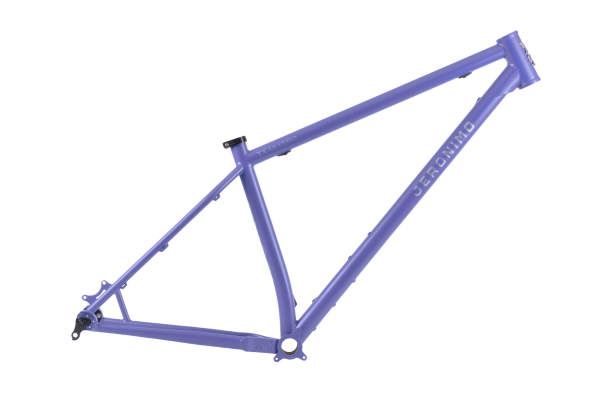

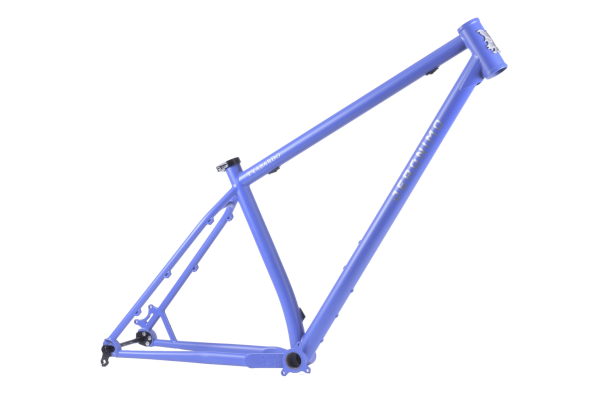

Our steel version of the Txabardo is built with CrMo4130 tubes. Like the titanium version, it offers internal cable routing. This frame was designed to work best with a 150 mm fork, but its geometry can handle suspension with travel from 140 mm up to 160 mm, and you can opt for 27.5 or 29 inch wheels. The Txabardo is also available as a Kit that includes suspension fork and headset. The frame is available in two colors: Orange Matte or Purpure Matte.

Specifications

CrMo 4130 double butted frame

Internal routing cables

Wheels 27.5 ″ + (up to 3 ″) or 29 ″ (up to 2.6 ″)

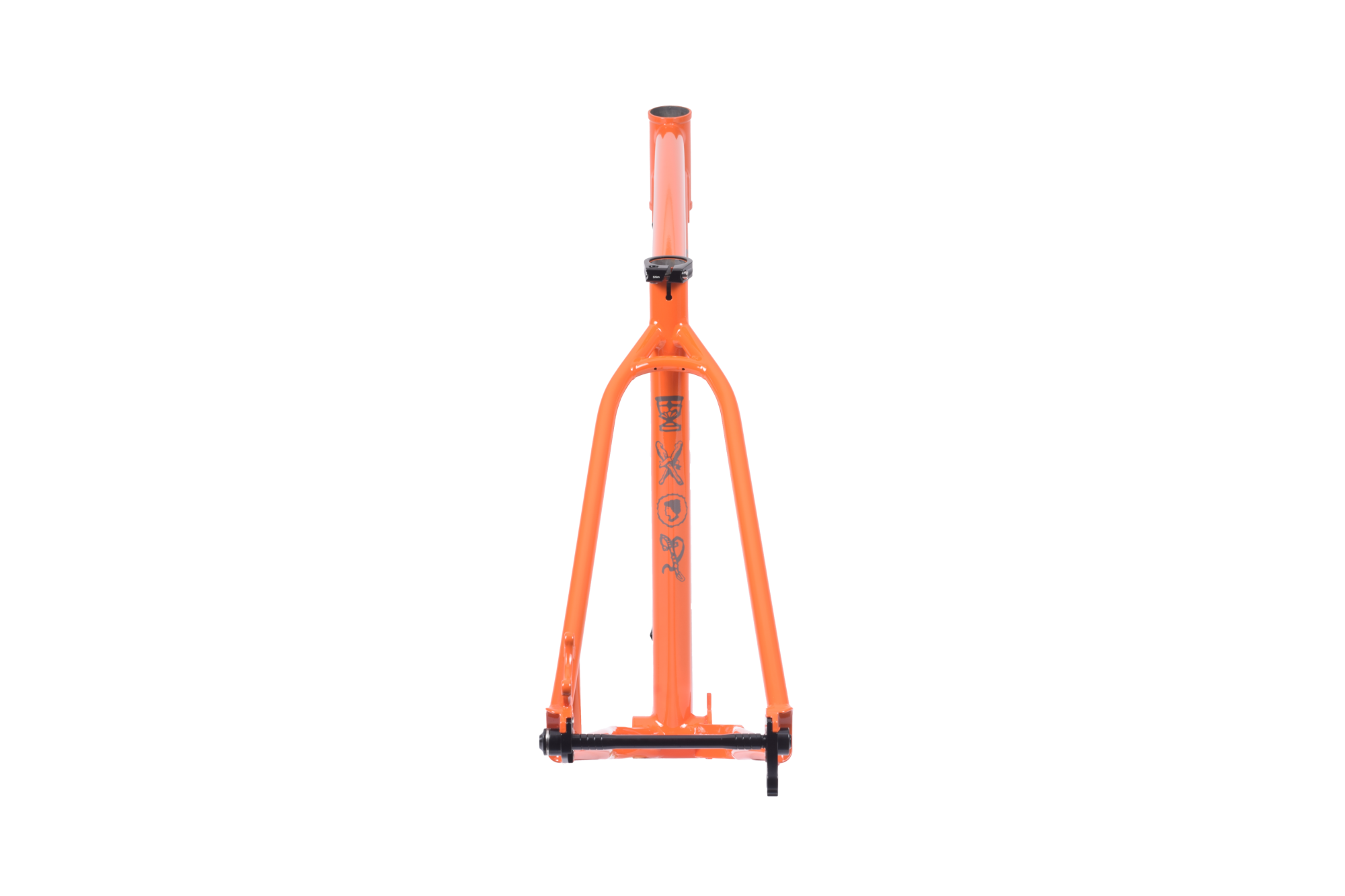

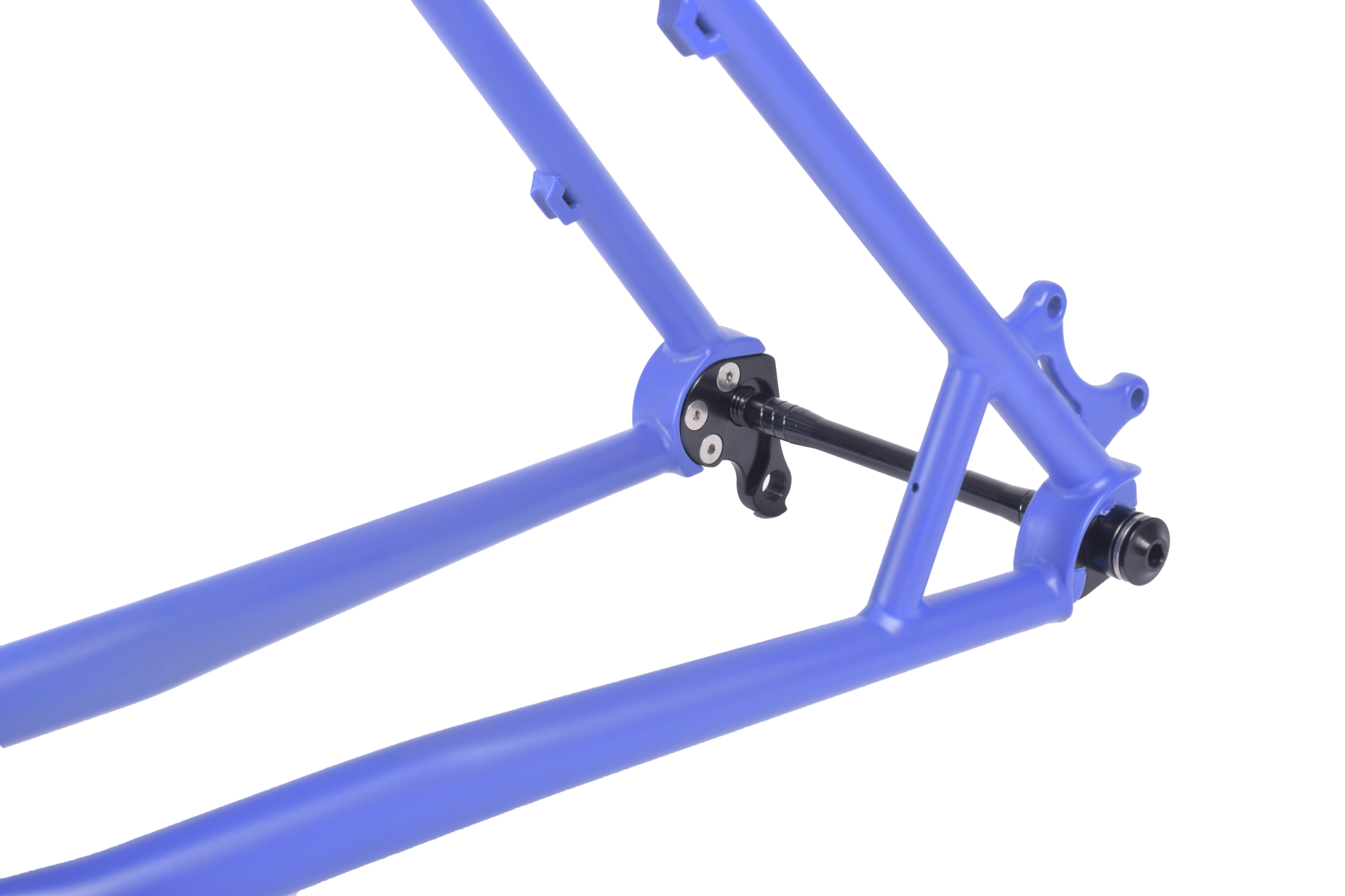

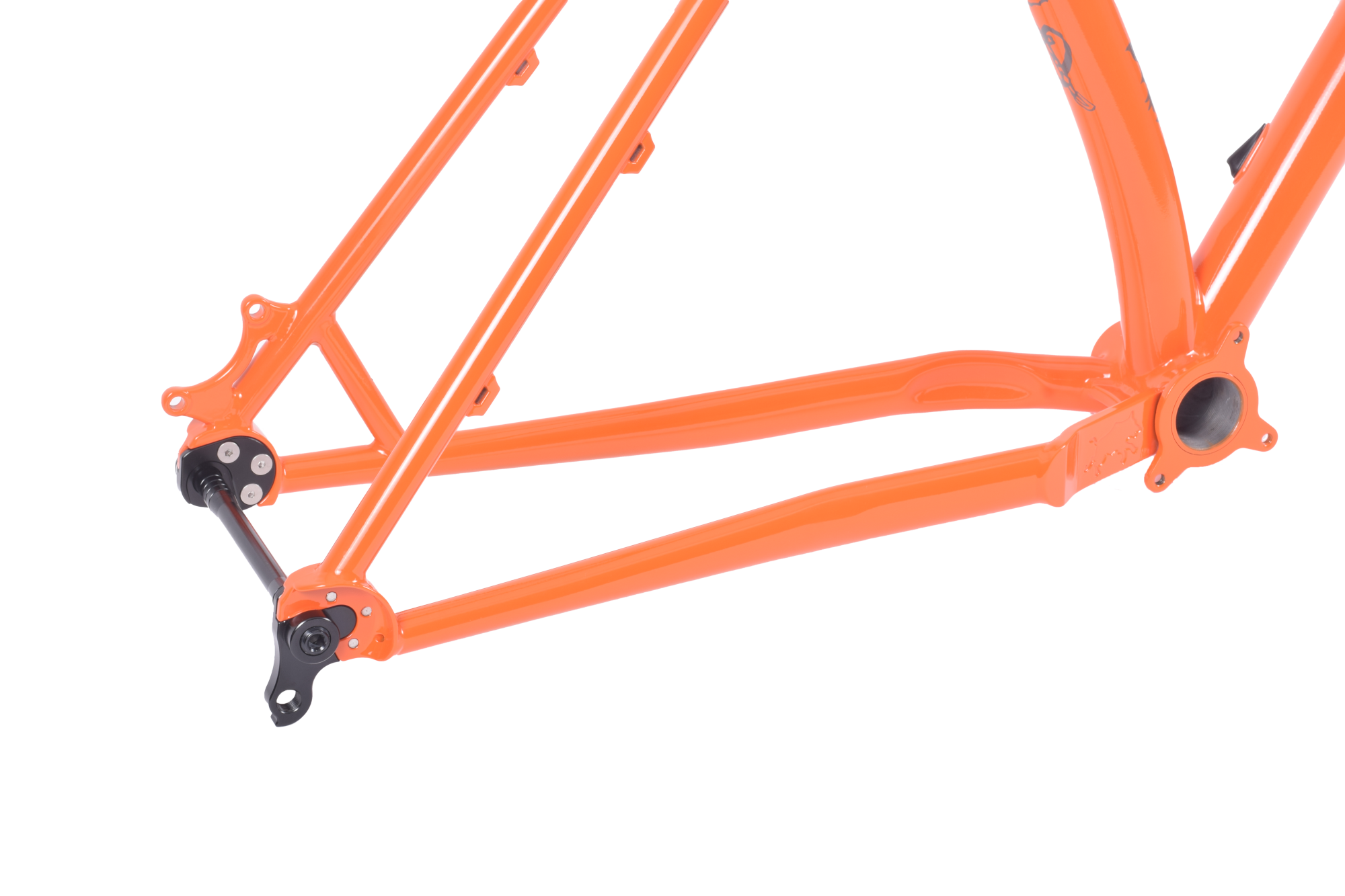

BOOST rear axle with replaceable 148x12mm dropouts, axle and dropouts included

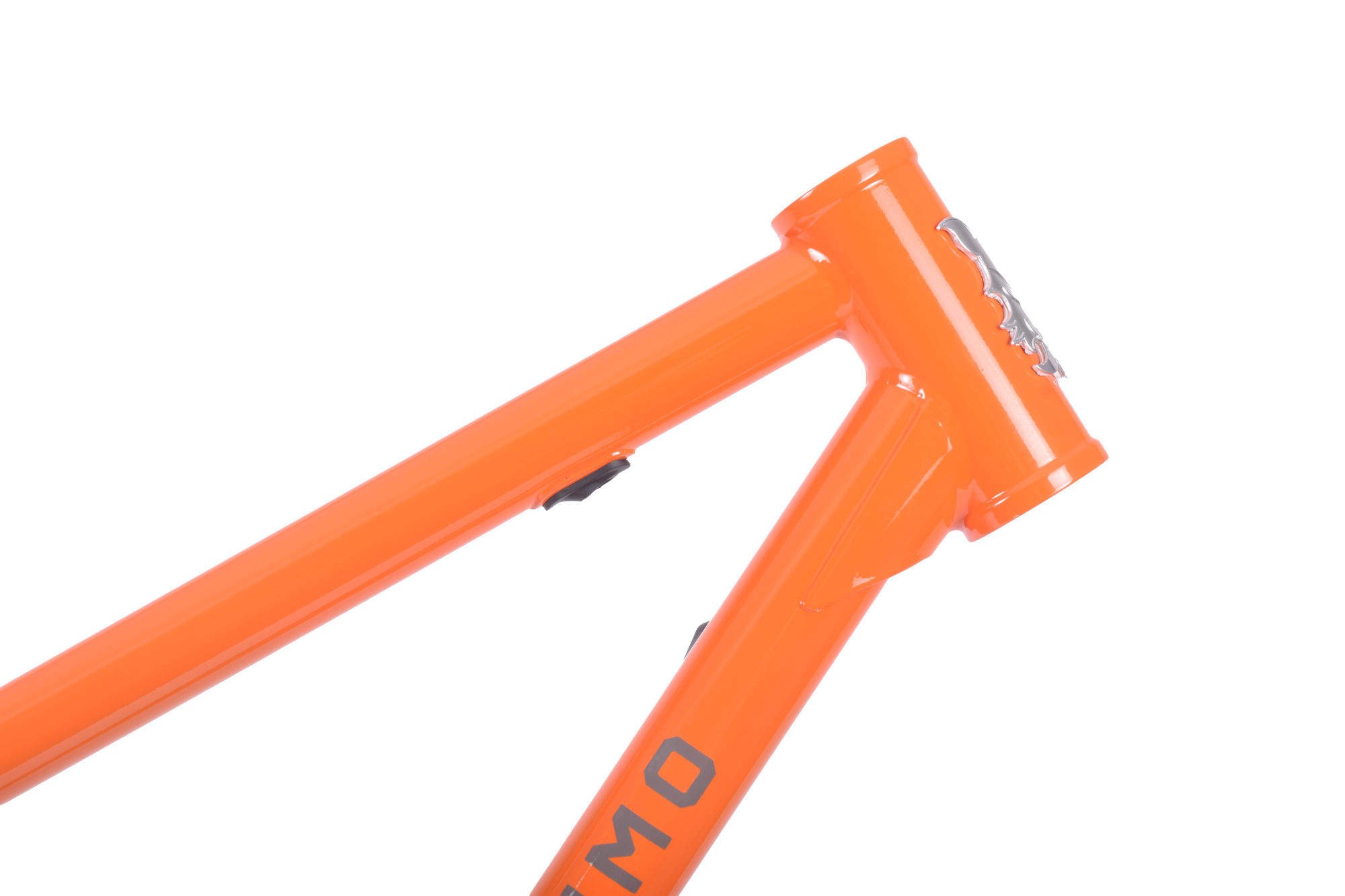

TR44 head tube

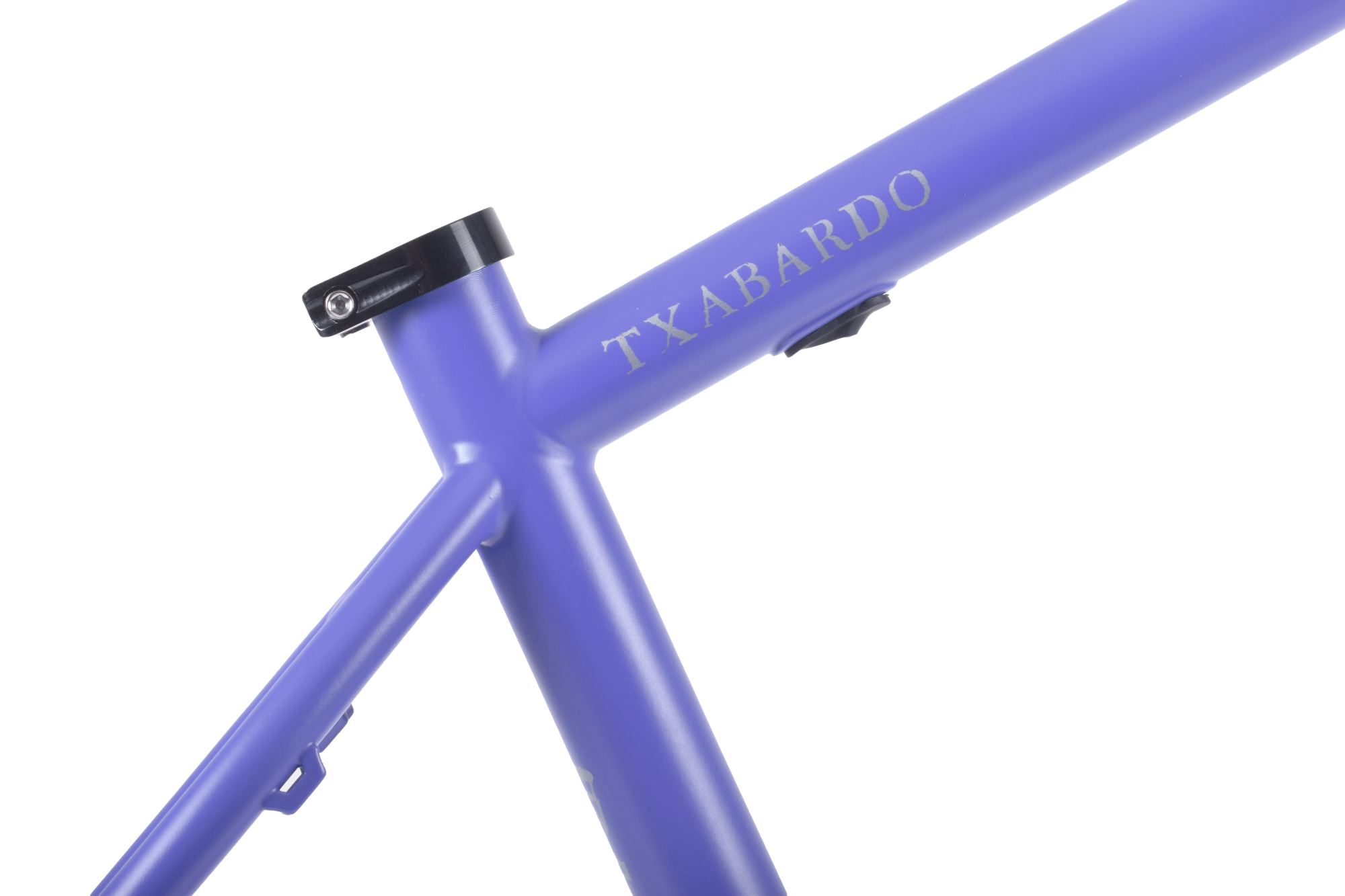

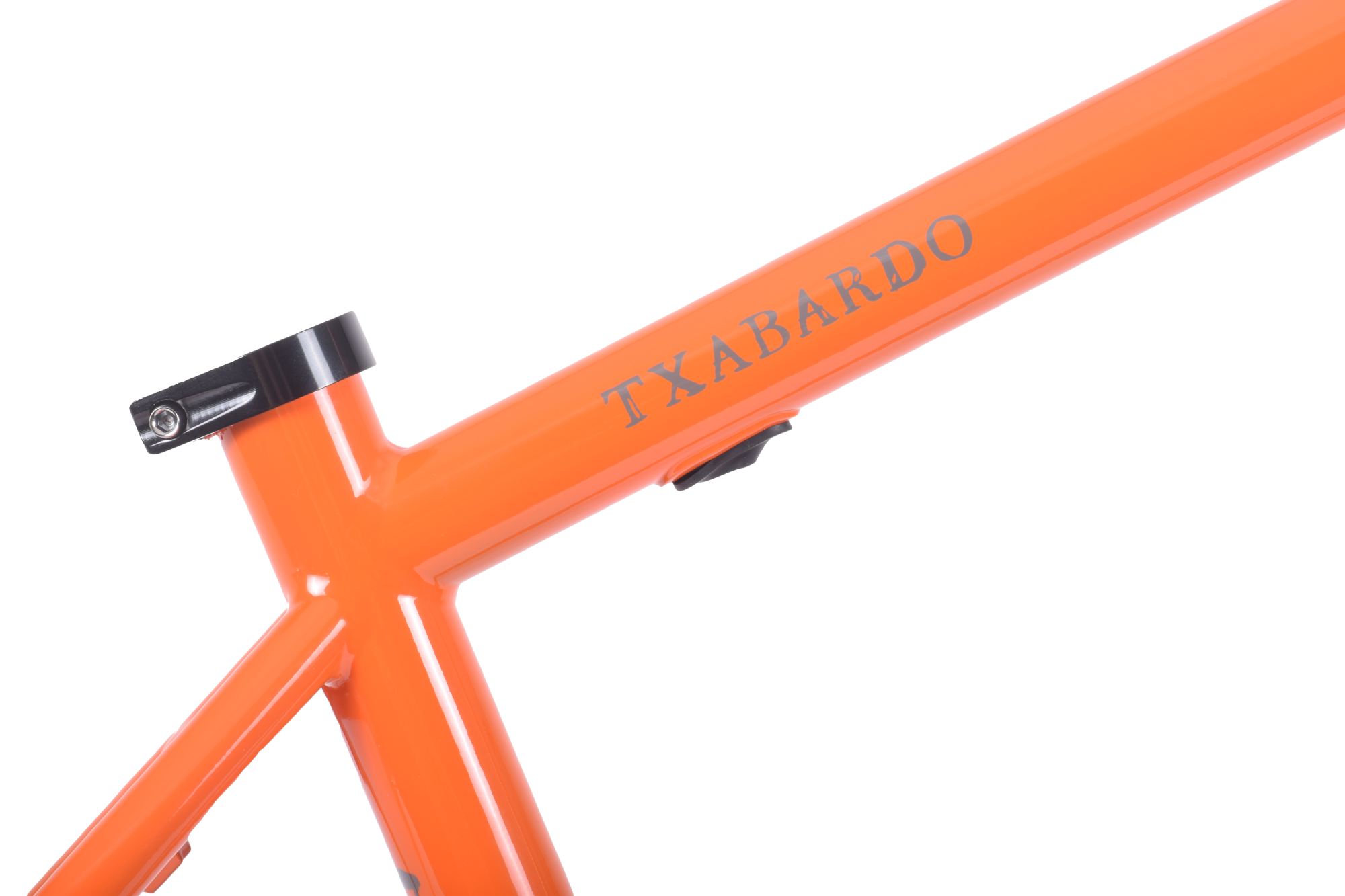

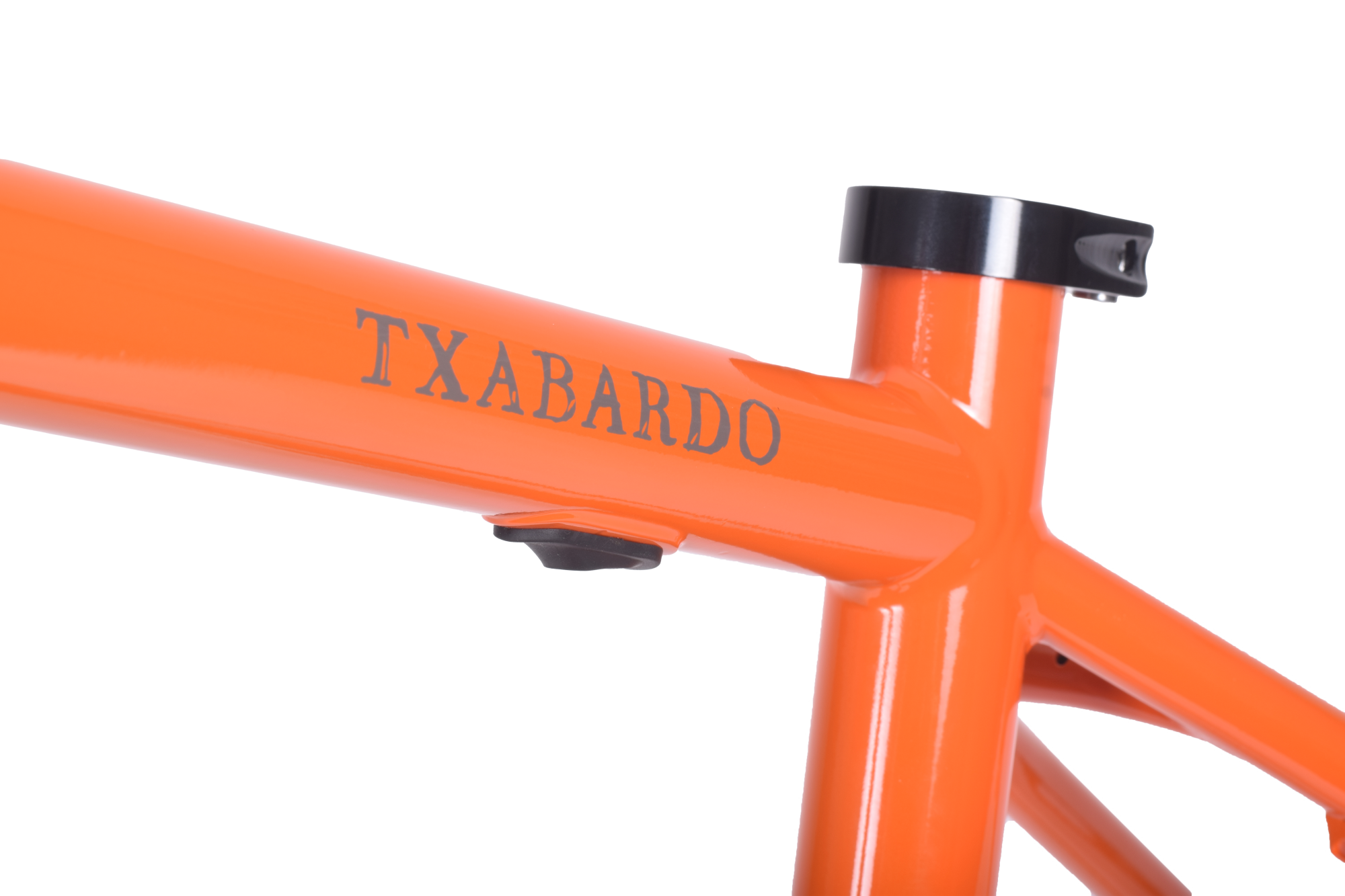

Seat clamp included

For 31.6mm diameter seatpost

Frame weight (size M/L): 2745 grams

Supports forks from 140mm to 160mm of travel with 44mm rake

Our models are named after unique characters that once lived in the small village in Northeastern Portugal where Pedro Jerónimo was born and raised. Txabardo was known for being a big gambler, and famous for his bad temper. Taking chances and pushing the limits was his life’s motto. Fearless, tough, living every day like it was his last day on Earth. We like to think of our frame that way.
